You need to select tinplate coating weight based on your product’s acidity, shelf life, and processing methods. The tin coating forms a barrier that prevents rust and chemical damage, making it vital for packaging foods or industrial goods. Consider these key factors when making your choice:
| Decision Factor | Why It Matters |
|---|---|
| Product Acidity | Higher acidity requires thicker coating |
| Shelf Life | Longer shelf life needs more protection |
| Processing (e.g., retort) | Intense heat demands extra coating |
| Handling and Storage | Rough conditions call for robust coating |
Tinplate Coating Weight Explained helps you match the right coating to your needs, ensuring maximum corrosion resistance.
Key Takeaways
- Select tinplate coating weight based on product acidity, shelf life, and processing methods to ensure maximum protection.
- Thicker tin coatings provide better corrosion resistance, especially for acidic foods or products stored in humid conditions.
- Understand the different methods for measuring tinplate coating weight, as each has its strengths and weaknesses.
- Follow industry standards like ASTM and EN to ensure your coating weight meets safety and quality requirements.
- Consider environmental factors such as humidity and chemical exposure when choosing the right coating weight.
- Balance the need for corrosion protection with cost and workability to avoid over-engineering or under-protection.
- Test your coating choices under real conditions to ensure they provide the necessary protection for your products.
- Consult with suppliers for advice on coating weight and treatment options to optimize performance and cost.

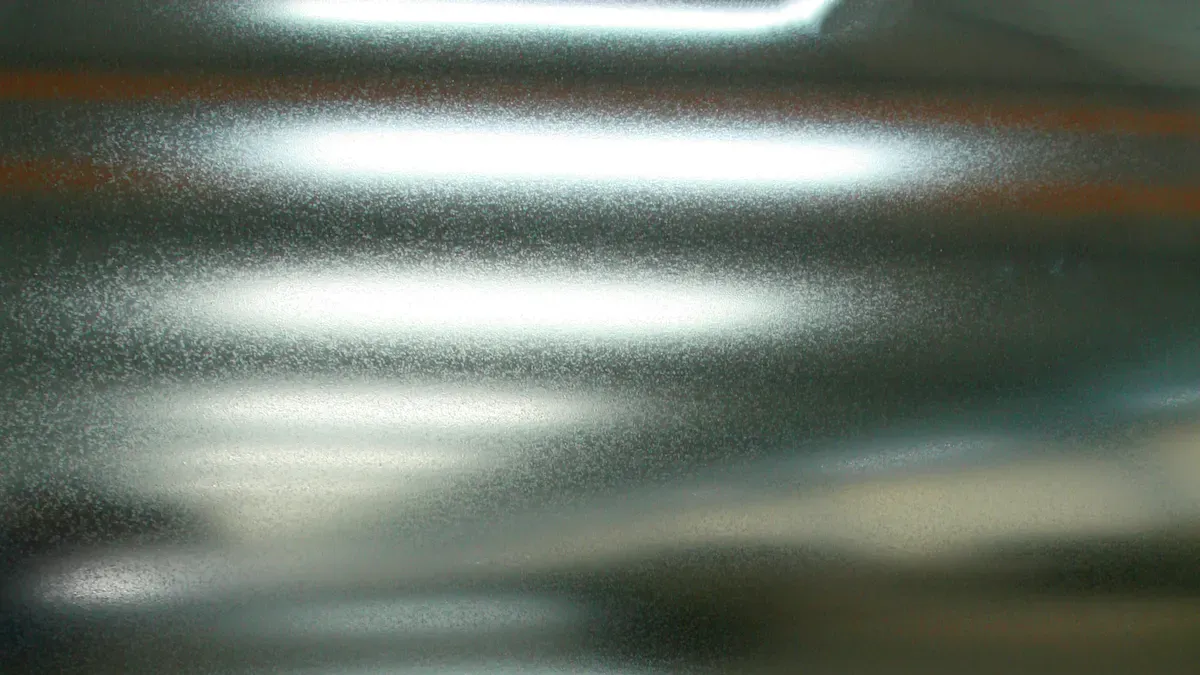

Tinplate Coating Weight Explained
What Is Tinplate Coating Weight
You need to understand what tinplate coating weight means before you select the right material. Tinplate coating weight measures the amount of tin applied to each side of a steel sheet. Manufacturers use several methods to measure this weight. The most common methods include X-ray fluorescence, coulometric stripping, and weigh-strip-weigh. Each method has strengths and limitations. For example, X-ray fluorescence works quickly and does not damage the sample, but it needs calibration standards. Coulometric stripping gives high accuracy, but the operator must have skill. Weigh-strip-weigh uses simple equipment, but surface cleanliness affects results.
| Method | Description | Typical Use | Strengths | Watch-outs |
|---|---|---|---|---|
| X-ray fluorescence | Measures tin mass per area non-destructively | Inline or lab screening | Fast, minimal prep | Needs calibration standards |
| Coulometric stripping | Measures tin mass by timed removal destructively | Referee, certification | High accuracy | Operator skill matters |
| Weigh-strip-weigh | Measures mass difference after stripping tin | Troubleshooting | Simple equipment | Sensitive to cleanliness |
You will see coating weights listed in grams per square meter (g/m²) per side. Typical values range from 2.8/2.8 to 8.4/8.4 g/m². Tinplate Coating Weight Explained helps you compare these values and choose the right one for your application.
How Coating Weight Affects Corrosion Resistance
Tinplate Coating Weight Explained shows that the thickness of the tin layer directly affects corrosion resistance. A higher coating weight means more tin covers the steel, which gives better protection against rust and chemical attack. If you package acidic foods or products that face harsh environments, you need a thicker coating. For less demanding uses, a lower coating weight may work. You must balance the need for corrosion resistance with other factors like cost and workability.
Tip: Choose a higher coating weight for products exposed to acids, moisture, or long storage times. This reduces the risk of corrosion and extends shelf life.
Industry Standards and Units
You must follow industry standards when you select tinplate. Tinplate Coating Weight Explained includes standards like ASTM A623/A623M, EN 10202, and JIS G 3303. These standards use g/m² per side as the unit. They also define common classes such as 2.8/2.8, 5.6/5.6, and 8.4/8.4. You will find these classes in food cans, aerosol components, and other packaging.
| Standard Family | Notation | Common Classes | Notes |
|---|---|---|---|
| ASTM A623/A623M | g/m² per side | 2.8/2.8, 5.6/5.6, 8.4/8.4 | Widely used for food cans |
| EN 10202 | g/m² per side | 2.8/2.8, 5.6/5.6 | Couples coating class with finish |
| JIS G 3303 | g/m² per side | 2.8/2.8, 5.6/5.6, 8.4/8.4 | Often paired with double-reduced MR |
You should check these standards and match your coating weight to your product’s needs. Tinplate Coating Weight Explained helps you make informed decisions and ensures you meet industry requirements.
Environmental and Application Factors
Humidity and Chemical Exposure
You must consider the environment where you will use or store tinplate. High humidity increases the risk of corrosion. Moisture in the air can reach the steel if the tin layer is too thin. Thicker tin coatings give better protection against moisture. The tin layer acts as a barrier and keeps water away from the steel. If you expect high humidity or chemical exposure, you should choose a higher coating weight.
- Thicker tin coatings provide better protection against moisture, which is essential in high humidity environments.
- The tin coating acts as a barrier, preventing moisture from reaching the underlying steel.
- Increased coating thickness correlates with enhanced corrosion and moisture resistance.
If you plan to use tinplate in areas with chemicals or salt, you need to increase the coating weight. Chemicals can break down thin coatings quickly. Tinplate Coating Weight Explained helps you match the right thickness to your environment.
Food vs. Industrial Uses
You need to match the coating weight to your product type. Food packaging and industrial uses have different needs. Food cans must protect flavor and prevent stains. Industrial products may need more focus on cost and adhesion.
| Application Type | Coating Weight Options | Specific Needs |
|---|---|---|
| Food Packaging | 5.6/5.6, 8.4/2.8 | Flavor preservation, sulfide stain resistance |
| Industrial Uses | 2.8/2.8, higher tin | Coating adhesion, corrosion resistance, cost balance |
If you package acidic foods, you should use a higher coating weight. This prevents the acid from reaching the steel. For industrial parts, you may choose a lower weight if the environment is less harsh. Always check the needs of your product before you decide.
Storage and Transport Conditions
You must think about how you will store and move your tinplate products. Long storage times or rough transport can damage thin coatings. If you expect long shelf life or harsh handling, you should select a thicker coating. This extra protection helps prevent scratches and rust during shipping.
Tip: Always inspect storage areas for leaks or high humidity. Good storage keeps your tinplate safe and extends its life.
Tinplate Coating Weight Explained guides you to consider all these factors. You can choose the right coating weight for your specific needs and avoid costly mistakes.
Selecting the Right Coating Weight
Application-Based Criteria

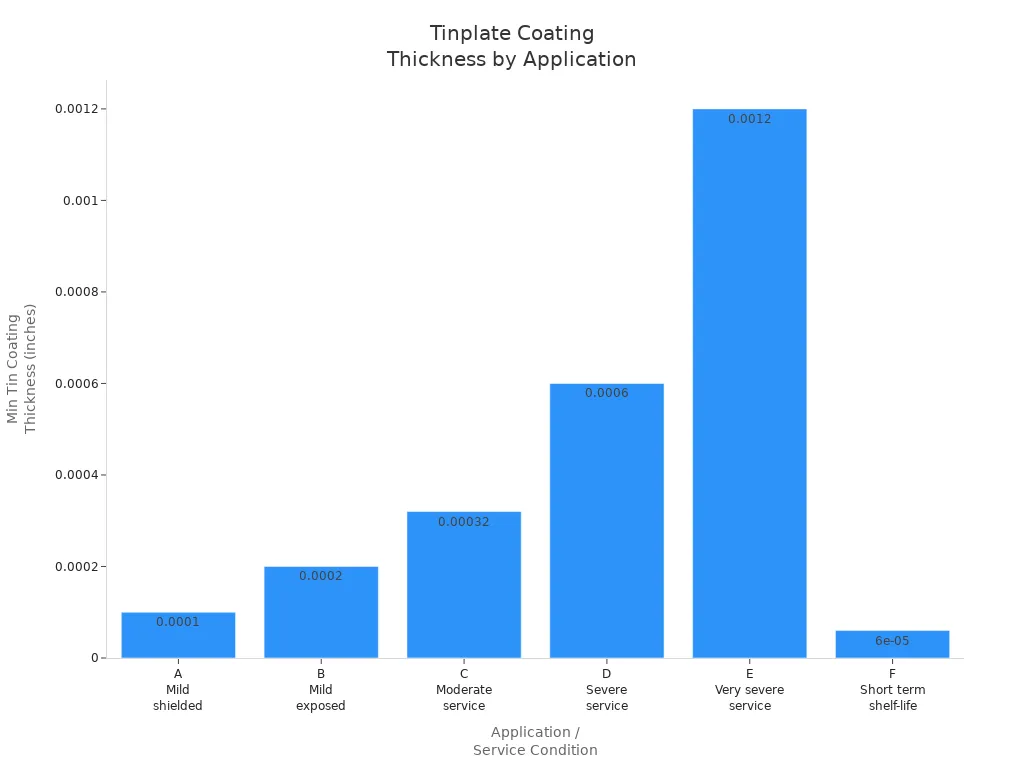

When you choose a tinplate coating, you must match the coating weight to your product’s needs. Different products and environments require different levels of protection. You can use industry guidelines to help you decide which class of coating fits your application.
| Class | Minimum Tin Coating Thickness (inches) | Application / Service Condition |
|---|---|---|
| A | 0.0001 | Mild service, surface shielded from atmosphere |
| B | 0.0002 | Mild service, exposed surface |
| C | 0.00032 (nonferrous), 0.0004 (ferrous) | Moderate service conditions |
| D | 0.0006 (nonferrous), 0.0008 (ferrous) | Severe service conditions |
| E | 0.0012 | Very severe service conditions |
| F | 0.00006 | Short term contact and shelf-life |
You should also consider these factors:
- Weight per side (for example, 2.8/2.8 g/m²)
- Coating distribution (equal or differential)
- Electro-tinning method
- Higher coating weight gives stronger corrosion resistance and better solderability
Choosing the right tin coating thickness protects your products from corrosion and increases the durability of the tinplate. Industry standards help you match the coating to your service conditions.
Acidic vs. Non-Acidic Products
Acidic products, such as tomato paste or fruit juices, attack metal surfaces more aggressively. You need a higher coating weight for these products to prevent corrosion and keep the contents safe. Non-acidic products, like dry foods or oils, do not need as much protection. You can use a lower coating weight for these items.
Tip: Always check the acidity of your product before you select a coating weight. Acidic foods need extra protection to avoid metal leaching and spoilage.
Shelf Life and Storage
Longer shelf life means your product will stay in the can or container for a longer time. You should choose a thicker tin coating for products with long shelf lives. This extra layer helps prevent rust and keeps the product fresh. If your product will be stored in humid or harsh conditions, you also need a higher coating weight.
Short-term products or items with quick turnover can use a lighter coating. This saves cost without sacrificing quality for the intended use.
Balancing Protection and Workability
You must balance corrosion protection with the ability to process and form the tinplate. If you use too much tin, the material may become difficult to weld or shape. If you use too little, you risk corrosion and product failure.
Industry experts recommend customizing the coating weight to achieve the best balance between protection and workability. This approach lets you fine-tune the corrosion barrier while keeping the material easy to handle during production.
Welding and Fabrication Considerations
Welding and forming processes can damage the tin coating. Thicker coatings may make welding more difficult because the tin can melt and cause defects. You should choose a coating weight that allows for smooth welding and forming, especially if your process involves high heat or complex shapes.
- For deep drawing or stamping, moderate coating weights often work best.
- For products that require spot welding, you may need to adjust the coating to avoid excessive tin buildup at the weld.
Risks of Coating Damage
Handling, storage, and transport can scratch or dent the tin coating. If the coating gets damaged, the steel underneath becomes exposed to air and moisture. This exposure can lead to rust and product failure. You should select a coating weight that can withstand your handling and shipping conditions.
Note: Inspect your production and logistics process for steps that might damage the coating. Adjust the coating weight if you find high-risk areas.
Tinplate Coating Weight Explained helps you understand how to match coating weight to your product, process, and environment. By considering these factors, you can choose a coating that delivers both protection and performance.
Performance and Cost Considerations
Over-Engineering vs. Under-Protection
You face a choice between over-engineering and under-protection when you select tinplate coating weight. Over-engineering means you use a coating that is thicker than necessary. This approach increases material costs and can make fabrication harder. Under-protection means you use a coating that is too thin. This choice puts your product at risk for corrosion, leaks, and spoilage. You need to find the right balance. If you package acidic foods or products with long shelf life, you should lean toward higher coating weights. For less demanding uses, you can choose a lighter coating. You avoid waste and reduce risk when you match the coating weight to your application.
Tip: Always review your product’s exposure to moisture, chemicals, and handling. Adjust the coating weight to match these risks.
Cost Implications
You must consider how coating weight affects your costs. Thicker coatings use more tin, which raises material expenses. You also need to factor in processing costs. Some products require special passivation or oil treatments. These treatments add to the total cost. You can see how different use cases affect coating weight and cost in the table below:
| Use case | Recommended coating mass | Passivation/oil | Substrate/temper | Notes |
|---|---|---|---|---|
| Tomato/fruit ends | 5.6/5.6 | Lacquer-friendly passivation; light DOS | SR or DR, moderate temper | Stable for beverage and food ends with aggressive fills. |
| Protein (fish/meat) cans | 8.4/2.8 (inside/outside) | Adhesion-optimized passivation; standard oil | SR/DR depending on draw | Inside weight helps sulfide stain resistance. |
| Aerosol general line | 5.6/5.6 or 8.4/5.6 | Match to internal coating system | DR for strength | Balance propellant exposure with seam reliability. |
| Paint/solvent | 2.8/2.8 or 5.6/2.8 | Coating-compatibility critical | SR for formability | Consider lacquer chemistry first. |
You see that higher coating weights often go with products that need strong corrosion resistance. Lower weights work for less aggressive contents. You save money when you avoid unnecessary thickness, but you must not compromise product safety.
Optimizing for Value
You can optimize for value by balancing performance and cost. You need to protect your product, but you also want to minimize expenses. Start by checking the integrity of the tin layer. This layer must stay intact to prevent rust and oxidation. Choose the right steel grade for your application. Some products, like dairy cans or paint containers, require high standards. Adjust the coating thickness to match your needs. You can use the table below to guide your choices:
| Key Factor | Description |
|---|---|
| Integrity of Tin Layer | Essential for protection against rust and oxidation. |
| Steel Grade Selection | Critical for applications requiring high corrosion resistance. |
| Coating Thickness | Must be optimized to maintain performance while minimizing weight. |
| Application Examples | Dairy cans, protein powder containers, and paint cans require high standards. |
You achieve maximum value when you select the lowest coating weight that still meets your corrosion resistance needs. You avoid overpaying for unnecessary protection. You also reduce waste and improve sustainability. Review your product’s requirements, consult with suppliers, and test your choices. This approach helps you deliver safe, reliable products at the best possible cost.
Compatibility with Additional Treatments
Lacquering and Organic Coatings
You often need to apply lacquers or organic coatings to tinplate for extra protection or to meet food safety rules. The success of these treatments depends on how well the coating sticks to the tin layer. If you choose the wrong coating weight, you may see poor adhesion or weak spots that lead to corrosion. The boundary between the tin coating and the steel acts as the weakest link in the system. You must pay attention to this interface.
You should match the lacquer chemistry to your product’s pH, acid type, and how much heat the product will face. For example, acidic foods need special lacquers that can handle low pH. High-temperature processes, like retorting, require coatings that will not break down. You can check the reliability of your system by running adhesion tests and corrosion resistance checks. These steps help you avoid failures in real-world use.
- The weakest point often sits at the coating–substrate boundary.
- You must match lacquer chemistry to product pH, acid type, and heat level.
- Always verify with adhesion and corrosion resistance tests.
Tip: Test your lacquered tinplate under real storage and processing conditions before you start full production.
Single vs. Double-Sided Coating
You can choose to coat one side or both sides of the tinplate. Your choice depends on your product and how you will use the tinplate. Food cans often need double-sided coatings for full protection. Some industrial parts only need a coating on one side, which can save money.
| Coating Type | Best Use Cases | Key Benefit |
|---|---|---|
| Single-sided | Lids, parts with one exposed side | Cost savings, less tin used |
| Double-sided | Food cans, harsh environments | Full corrosion protection |
You should think about the risks of using single-sided coatings. If the uncoated side faces moisture or chemicals, you may see rust or failure. Double-sided coatings give you more safety but use more material.
Impact on Manufacturing
Your choice of coating weight and additional treatments affects how you process tinplate. Thicker coatings can make welding or forming more difficult. You may see tin buildup at welds or cracks during deep drawing. You should balance the need for protection with the need for smooth manufacturing.
Organic coatings and lacquers add steps to your process. You must allow time for drying or curing. You also need to check that the coating sticks well after forming or welding. If you skip these checks, you risk product failure.
- Plan your process to include drying or curing time for organic coatings.
- Run adhesion tests after forming or welding to catch problems early.
Note: Work closely with your suppliers to choose the right coating weight and treatment for your process. This teamwork helps you avoid costly mistakes and ensures your products last longer.
Case Studies and Practical Examples
High Corrosion Resistance Applications
You can learn a lot from real-world examples where companies improved corrosion resistance by adjusting tinplate coating weight. Many packers and manufacturers have faced challenges with product quality and shelf life. They solved these problems by selecting the right coating weight for their application.
| Example | Original Coating Weight | New Coating Weight | Outcome |
|---|---|---|---|
| North American Tomato Packer | 2.8/2.8 | 5.6/2.8 | Eliminated blush and returns without changing the draw schedule. |
| Southeast Asian Tuna Packer | 5.6/5.6 | 8.4/2.8 | Reduced sulfide staining and stabilized seam quality. |
| Central European Aerosol Can Producer | N/A | Increased inside coating | Extended service life while meeting drop test criteria. |
You see that increasing the coating weight often solves corrosion problems. For example, a tomato packer in North America switched from 2.8/2.8 to 5.6/2.8. This change stopped blush and reduced product returns. A tuna packer in Southeast Asia moved from 5.6/5.6 to 8.4/2.8. This adjustment lowered sulfide staining and improved seam quality. An aerosol can producer in Central Europe increased the inside coating. This action extended the service life and helped the cans pass drop tests.
Tip: Review your product’s performance history. If you notice corrosion or staining, consider increasing the tin coating weight.
Common Mistakes and Solutions
You may encounter several mistakes when selecting tinplate coating weight. Many companies focus only on price or thickness. This approach can cause production issues and lead to costly delays. Low-grade tinplate often shows defects after production starts. You need to avoid these problems by using a comprehensive evaluation.
- Evaluate tinplate based on consistent coating weight, temper grade, and food safety standards.
- Treat tinplate as a process-critical input, not just a commodity.
- Match surface finish to your printing method for the best results.
- Ensure the coating weight fits your application needs.
You should always check the coating weight for consistency. If you use tinplate with uneven coating, you risk corrosion and product failure. Matching the temper grade to your process helps prevent defects during forming or welding. Compliance with food safety standards protects your brand and keeps your products safe.
Note: Work with your supplier to confirm coating weight, temper grade, and surface finish. This teamwork helps you avoid mistakes and ensures reliable performance.
You can improve your results by following these practical steps. Focus on application needs, process requirements, and quality standards. This approach helps you select the right tinplate coating weight and achieve maximum corrosion resistance.
Step-by-Step Selection Guide
Assess Needs and Risks
Start by looking at your product and its environment. Think about what you are packaging or producing. Ask yourself these questions:
- Does your product contain acids or salt?
- Will it face high humidity or temperature changes?
- How long will it stay in storage or on the shelf?
- Will the tinplate go through welding, forming, or rough handling?
You need to match the coating weight to these risks. Acidic foods, like tomatoes or fruit, need thicker coatings. Industrial parts stored outdoors also need more protection. If your product has a short shelf life or stays in a dry place, you can use a lighter coating. Always check your process for steps that might scratch or damage the coating.
Tip: Make a checklist of your product’s risks before you choose a coating weight. This helps you avoid costly mistakes.
Consult Standards and Suppliers
You should always check the main standards for tinplate. These standards help you compare products and make sure you meet quality rules. Suppliers often follow these standards, so you can use them to guide your choice.
| Standard Reference | Description |
|---|---|
| EN 10202 | European standard for tinplate coatings. |
| ASTM A623/A623M | American standard for tinplate specifications. |
| JIS G 3303 | Japanese standard for tinplate quality. |
Talk to your supplier about your needs. Share details about your product, process, and storage. Ask for their advice on coating weight and finish. Suppliers can suggest the best options for your application. They may also offer samples or technical data to help you decide.
Note: Always request documentation that shows the tinplate meets the right standard. This protects your product and your brand.
Test and Validate Choices
After you select a coating weight, you need to test it. Testing makes sure the tinplate will protect your product in real conditions. Use several methods to check the coating’s quality and performance.
| Testing Method | Purpose |
|---|---|
| Coating continuity inspection | Finds pinholes in coatings before filling cans. |
| Seam integrity evaluation | Checks coating thickness at seams and edges. |
| Corrosion aging resistance tests | Simulates long-term exposure to moisture and oxygen. |
| Thermal processing simulations | Tests how the coating holds up during heating or retorting. |
| Industry standard alignment | Confirms testing matches ISO or ASTM guidelines for reliable results. |
Run these tests on samples before full production. Look for signs of rust, staining, or coating failure. If you see problems, adjust the coating weight or process. Repeat testing until you get the protection you need.
Tip: Keep records of your test results. This helps you track quality and solve problems faster in the future.
You can select the right tinplate coating weight by following these steps:
- Start with your can’s size, shape, and product type.
- Pick a base temper that gives enough strength.
- Choose a coating scheme that balances corrosion resistance and workability.
- Adjust thickness, coating mass, and finish to match your needs.
Review your choices often. Talk with your supplier and test your tinplate as your products or processes change.
FAQ
What does “coating weight” mean for tinplate?
Coating weight shows how much tin covers each side of the steel sheet. You see values in grams per square meter (g/m²). Higher numbers mean thicker tin layers and stronger corrosion protection.
How do you pick the right coating weight for food cans?
You check your product’s acidity, shelf life, and storage conditions. Acidic foods need thicker coatings. Longer shelf life also calls for more tin. Ask your supplier for advice based on your product.
Can you use single-sided tinplate for packaging?
You can use single-sided tinplate for lids or parts with only one exposed side. Double-sided coatings work best for cans and harsh environments. Always match the coating to your product’s needs.
Does a thicker tin coating affect welding?
Yes, thicker tin can make welding harder. You may see tin buildup at welds. Choose a coating weight that balances corrosion protection and smooth welding. Test your process before full production.
What happens if you use too little tin?
Too little tin leaves steel exposed. You risk rust, leaks, and product spoilage. Always match coating weight to your product’s risks and environment. Review your choices if you see corrosion.
How do you check if your tinplate meets standards?
You ask your supplier for documentation. Look for ASTM, EN, or JIS standards on the certificate. Run tests for coating thickness and corrosion resistance. Keep records to track quality.
